Grantry 2 post car lift

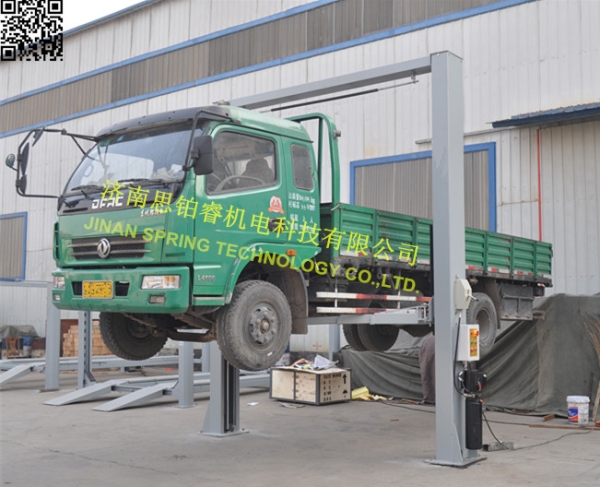

Grantry Two Post Car lift
Advantages
1.Clear floor design,can make the operate in the vehicle under working more easily.
2.By two cylinder,plate and wire rope chain balance system,lifting and lowering smooth.
3.Hydraulic power unit configuration throttling device,can always adjust the rate of decline.
4.Manual mechanical lock release form two sides.
5.24V height switch asymmetric arm design,leaves more space for the cars .
6.Arm uses asymmetric type design,doors open more big.
7.Standard door protection rubber block, protect the door from damage
8.It has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
9.CE certificated.
|
型號 |
Model |
SP-D3500 |
SP-E4000 |
SP-F4500 |
SP-G4500 |
SP-H5000 |
|
舉升重量 |
Lifting weight |
3500kg |
4000kg |
4000kg |
4500kg |
5000kg |
|
舉升高度 |
Lifting height |
1800mm |
1800mm |
1800mm |
1800mm |
1900mm |
|
最低高度 |
Minimum height |
110mm |
110mm |
110mm |
110mm |
110mm |
|
立柱高度 |
Column height |
3630mm |
3630mm |
3630mm |
3830mm |
4430mm |
|
柱間寬度 |
Width between columns |
2800mm |
2800mm |
2800mm |
2800mm |
3230mm |
|
安裝寬度 |
Installation width |
3450mm |
3520mm |
3550mm |
3550mm |
3925mm |
|
上升時間 |
Lifting time |
60s |
60s |
60s |
60s |
70s |
|
下降時間 |
Falling time |
50s |
50s |
50s |
50s |
50s |
|
電機功率 |
Motor power |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
3.0kw |
|
電源電壓 |
Power voltage |
110V/220V/240V/380V/415V |
||||
